TUV PV1-F 4mm twin solar cable DC Rated for solar panel solar system Australia hot-selling

TUV PV1-F 4mm twin solar cable DC Rated for solar panel solar system Australia hot-selling

Product Description

Construction:

1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5.

2.Insulation: Polyolefin copolymer electron-beam cross-linked.

3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked.

4.Sheath Color: Black/Red/Blue or as per customer's request.

 TUV PV1-F 4mm twin solar cable DC Rated for solar panel solar system Australia hot-selling

Twin Core  Solar cable
Cable Type	Nominal   area	Core  construction	Conductor  Dia	Outer Dia	Rated  voltage	Rated  current
	(mm2)	Strand/Dia  (mm)	mm	mm	AC/DC(V)	(A)
2x1.5mm2	1.5	30X0.25	1.6	5.80*9.30	1000/1800	20
2x2.5mm2	2.5	48X0.25	2	6.20*9.90	1000/1800	30
2x4.0mm2	4	56X0.30	2.6	6.90*11.30	1000/1800	50

Twin Core  Solar cable
Cable  Size   (mm2)	Conductor   Strand   (mm)	Nominal  insulation  thickness  (mm)	Nominal  sheath  thickness    (mm)	Overall  Dia        (mm)	Max. Conductor  Resis(20ºC)   (Ω/Km)
2×2.5	49/0.25	0.7	0.8	5.0±0.3×10.6±0.3	8.21
2×4	56/0.30	0.8	0.9	6.2±0.3×13.8±0.3	5.09
2×6	84/0.30	0.8	1.0	7.2±0.3×15.3±0.3	3.39
2×10	84/0.40	1.0	1.0	9.0±0.3×19.2±0.3	1.95

Application

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment  with high mechanical

requirements and extreme weather conditions .For permanent installations.

Main feature:

1.Temperature range for application -40°C up to 90°C, max.temperature at conductor 120°C

2.Electron beam cross-linked material does not melt or flow at high temperatures

3.The permitted short-circuit-temperature refer to a period of 5s is 200°C

4.High resistance against UV,ozone and hydrolysis

5.Flexible,easy to strip

6.Dual wall insulation.Electron beam cross-linked

7.Excellent resistance to U.V,oil,greases,oxygen and ozone

8.Excellent resistance to abrasion

9.Halogen free, flame retardant,low toxicity

10.Excellent flexibility and stripping performance

11.High current carring capacity

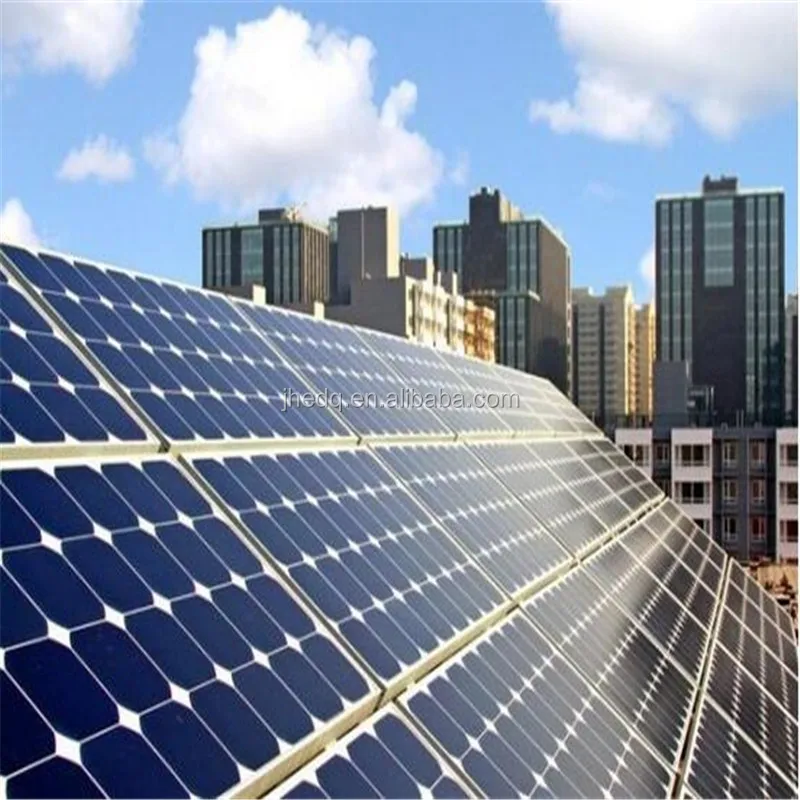

Application



Company Information

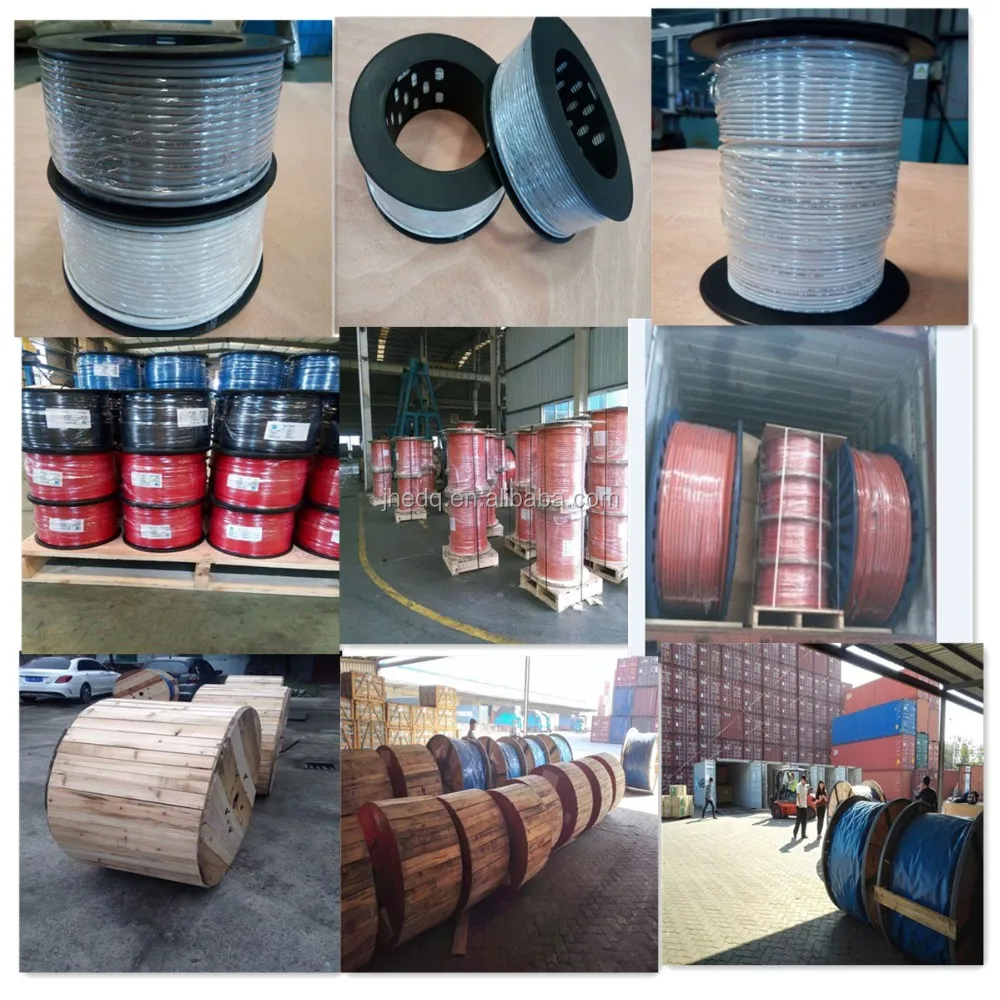

Packaging & Shipping



FAQ

 Good service:

When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.

Sample is free,but the freight charge should be paid.

How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

The best record we keep is delivering 10 kilometers cable within a week.

Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
