Military Standard PTFE Insulator multi-strand nickel plated copper Cable

Product Description

Application: PTFE,ETFE and FEP Cable for gearbox, Oil-box, Sensor interconnect 0.35mm2----10.00mm2 32AWG ----10 AWG 1,Excellent mechanical properties and chemical resistance. 2,Outstanding Oil resistance, etching. 3,High tear and tensile strength damping characteristic. Operating temperature range -100 °C to +260°C for PTFE -100 °C to +250°C for PFA -60 °C to +200°C for FEP -60 °C to +175°C for ETFE

APLLICATION

For internal wiring or external wiring

of electronic equipment

Rated temperature:200℃

Rated voltage:30V

PTFE,ETFE and FEP  internal wiring or external wiring

Conductor			Insulation		Over Diameter		Packing Ft/Roll
AWG	No./mm	Out.Dia. mm	Avr.Thick. mm	Min.Thick. mm	average mm	tolerance mm
20	19/0.19	0.95	0.15	0.10	1.25	±0.10	2000
22	19/0.15	0.75	0.15	0.10	1.05	±0.10	2000
24	7/0.20	0.61	0.15	0.10	0.91	±0.10	2000
26	7/0.16	0.48	0.15	0.10	0.78	±0.10	2000
28	7/0.127	0.38	0.15	0.10	0.68	±0.10	2000
30	7/0.10	0.30	0.15	0.10	0.60	±0.10	2000
32	7/0.08	0.24	0.15	0.10	0.54	±0.10	2000



Company Information

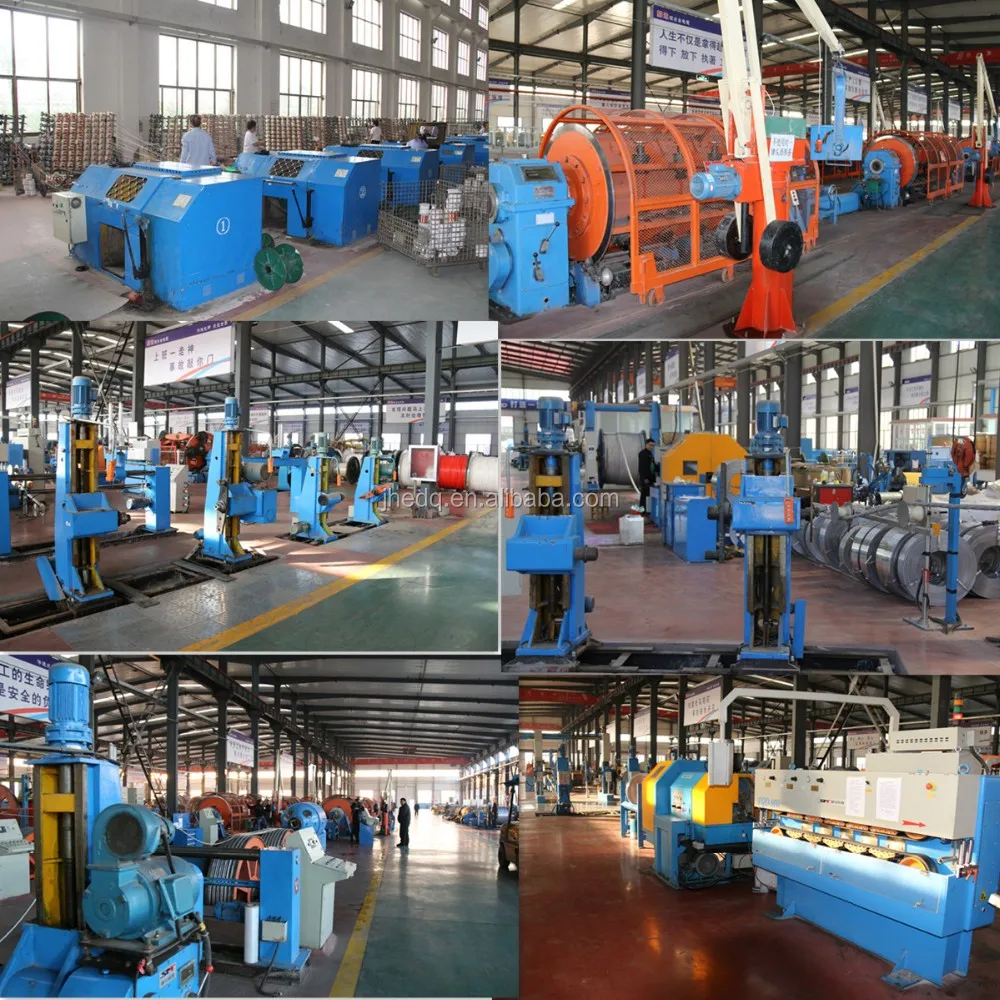

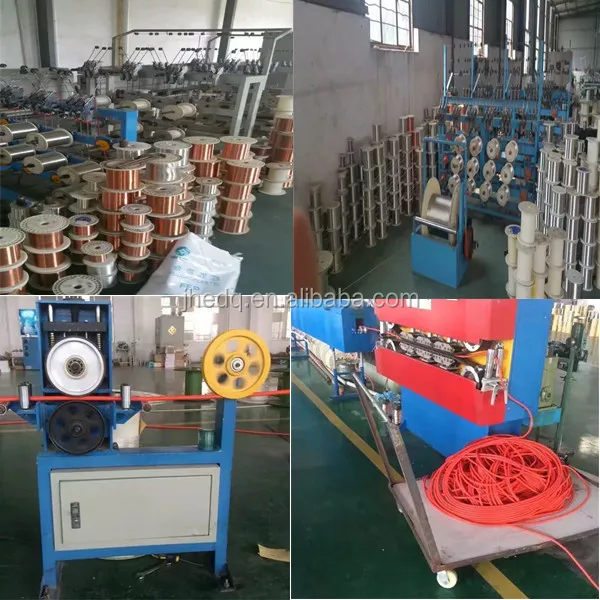

Production process



Part of certificate

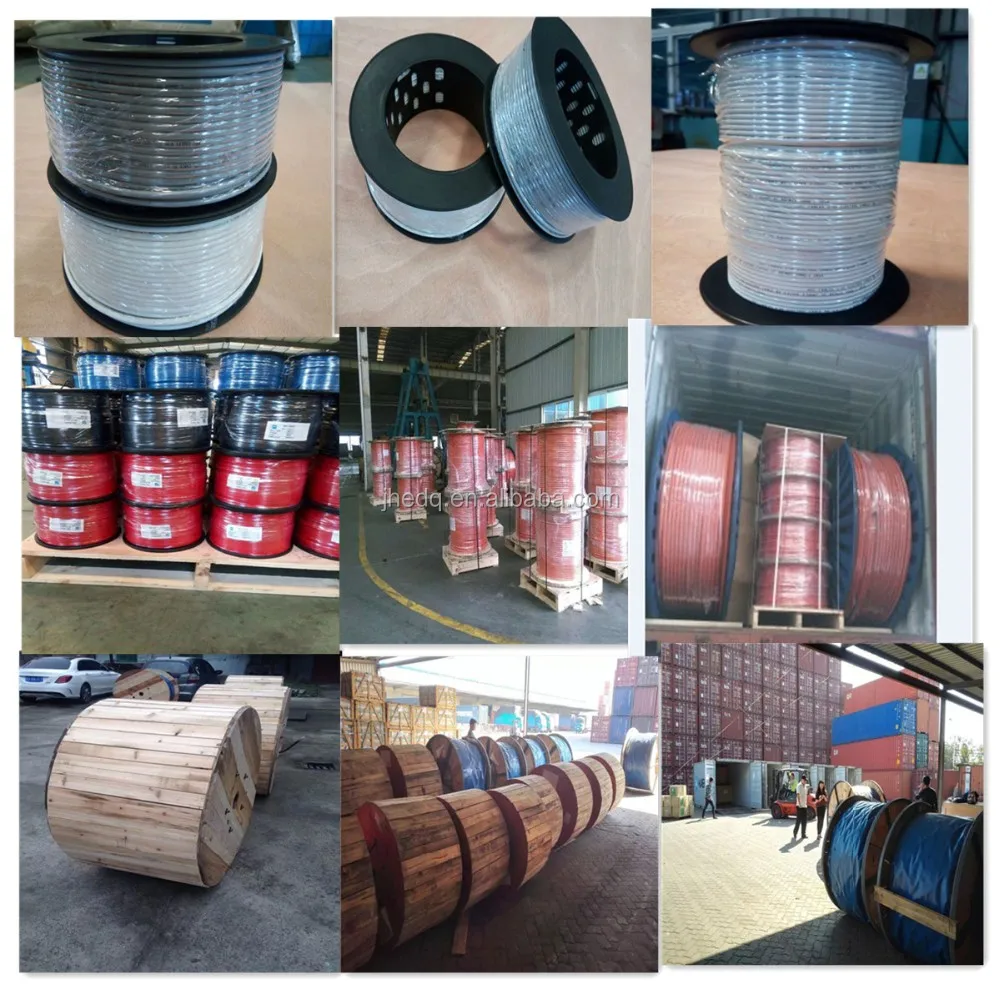

Packaging & Shipping
