KC/KX/SC fiberglass/silicone/telfon/PVC thermocouple compensation/extension cable/wire

Product Description

thermocouple compensation cable
Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50  to  +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
material of insulation:	fiberglass, telfon, PTFE, PVC, silicone,so on
material of jacket:	fiberglass, telfon, PTFE, PVC, silicone,so on
shielding material:	Stainless Steel Braid and  Tinned Copper wire braid

KC/KX/SC fiberglass/silicone/telfon/PVC thermocouple compensation/extension cable/wire

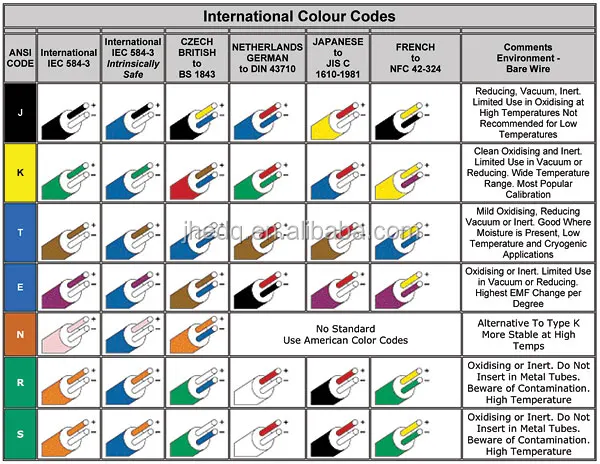

Type	Conductor	Grade	Working temperature
			Insulation material		deg.C
S	Cu, Ni-Cu	A	PVC		-25~70C
		B
R	Cu, Ni-Cu	A	Silicone		-60~200C
		B
K	Cu, Ni-Cu/	A	Telfon		-60~250C
	Ni-Cr, Ni-Si	B
N	Cu, Ni-Cu/	A	Fiberglass		-60~500C
	Ni-Cr, Ni-Si	B
E	Ni-Cr,Ni-Cu	A	Kapton		-60-300C
		B
J	Iron,Ni-Cu	A
		B
T	Cu, Ni-Cu	A
		B



The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement.

The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control.

The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables.

The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our factory mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB  compensating wire for thermocouple, and they are used in temperature measurement instruments and cables.

The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX

X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple

C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

Packaging & Shipping

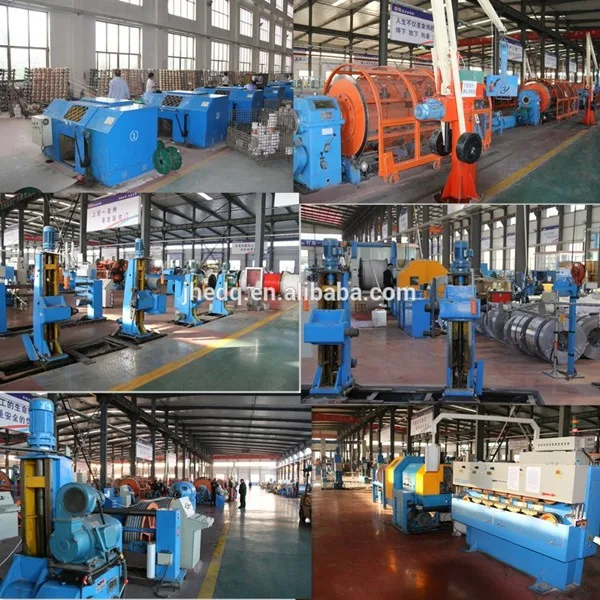

Production process
